規格SPECIFICATIONS

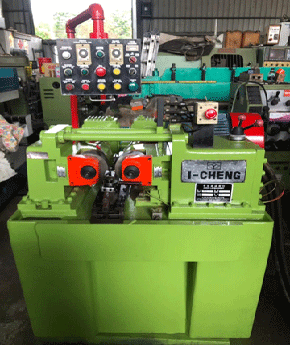

IC-515

滾製螺絲直徑範圍Thread Diameter

6 mm~35 mm

節距範圍Pitch

0.75~4.0 P

滾製螺絲最大長度Maximum length of thread

Free隨量

滾輪轉速Rotary die speed

24.38.52.78 rpm

滾輪外徑Maximum diameter or rotary dies

150 mm

滾輪內徑Bore diameter of rotary dies

54 mm

滾輪厚Width of rotary dies

100 mm

滾輪軸間最大距Maximum centre distance of die-spindled

170 mm

滾輪軸間最小距Minimum centre distance of die-spindled

120 mm

滾轉量Output (pcs/min)

6~30

床面至滾輪中心距Height from table surface to die center

163 mm

三相交流馬達Motor: 3 phase, A.C.

油壓3 HP、主軸7.5HP

機械體積Overall dimensions (L×M×H)

1270X980X1570 mm

重量Net weight, approx

1650 kg

裝箱尺寸Size of packing

1970X1480X1420 mm

箱重Packing nets weight

350 kg
